New DAQ Computer

This page contains all the technical details on the new DAQ computer (i.e. G14-DAQ-NEW, or FPGA computer), as well as details on the DAQ migration.

Specifications

• Model: HP Z440; GovConnection link
• CPU: 3.7 GHz Xeon E5-1630V3
• RAM: 24 GB, DDR4 (3 x 8 GB), max = 128 GB. Buy more here
• HDD: 1 TB
• SSD: 1 TB. Buy more here
• OS: Windows 7 64 bit
• PCI Slots:
  • PCIe 2.0 x1: Broadcom BCM5751 Netxtreme network card. Buy here
  • PCIe 3.0 x16: Nvidia Quadro NVS 450 graphics card. Buy here
  • PCIe 2.0 x4: PCIe-8375, PXIe rack controller. Buy here
  • PCIe 3.0 x8
  • PCIe 3.0 x16
  • PCI

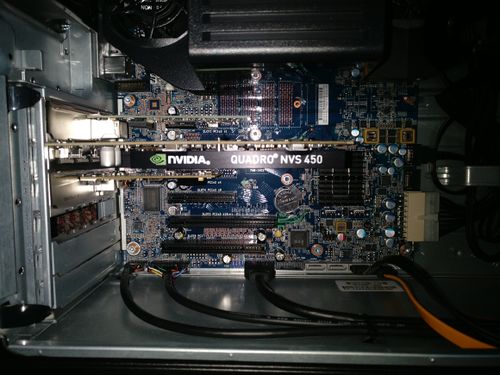

View of CPU

Software Installed

• Labview Professional 2014 SP1 (32 bit)
• Labview Professional 2014 SP1 (64 bit)
• Labview FPGA Development Module 2014 SP1
• NI-SCOPE 2014
• NI-DAQmx 14.5
• NI-488.2 14.0 (GPIB to Ethernet)
• TortoiseSVN 1.8.11
• WinSCP
• Office 2007 (Word, Excel, Powerpoint, Access)
